Tank litres alone do not describe service. Usable hot water depends on stored temperature, incoming cold water, delivery temperature, draw pattern and how quickly the heater recovers.

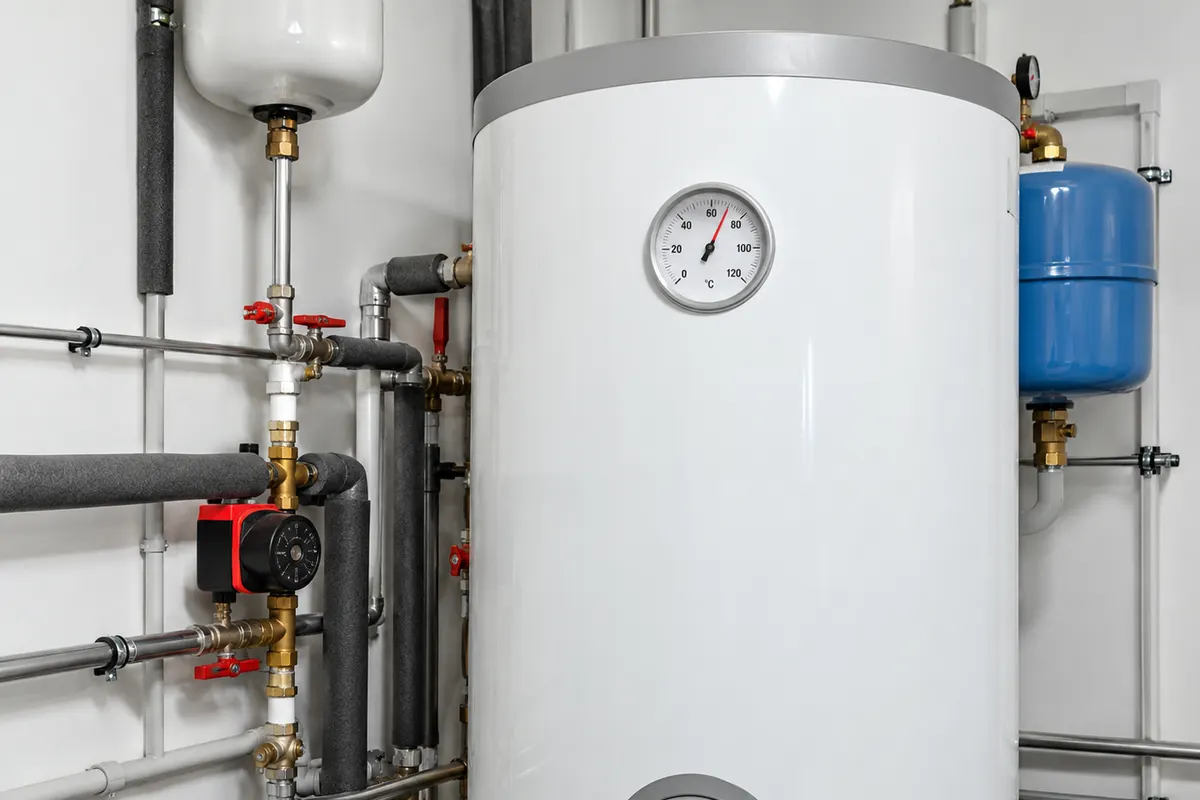

AI-generated topic illustration, not an installation diagram. Connections, dimensions and instrument readings shown are not recommendations.
1. Record the peak sequence, not only daily use
List showers, baths, sinks and appliances that may draw hot water close together. The most demanding thirty to ninety minutes often determines storage more directly than the daily total.
Measure shower flow and realistic water-running time. A lower-flow fixture can extend service without changing storage, but confirm that users still receive acceptable performance.
2. Keep the four temperatures distinct
Record incoming cold water, tank setpoint, realistic average stored temperature and delivered mixed temperature. These are not interchangeable values.
Cold-water temperature can vary by season. Storage and delivery temperatures must follow local hygiene, scald-protection and equipment requirements; arithmetic does not select safe settings.
The example’s 55°C storage and 40°C delivery are calculation inputs, not safe setpoints for every system.
US CPSC · Avoiding tap water scalds (US safety guidance, PDF) ↗3. Convert stored litres into delivered litres
Hot stored water is mixed with cold water at the outlet. A higher storage temperature can increase ideal mixed volume, but only where the equipment and a suitable thermostatic mixing arrangement safely support it.
This is an ideal estimate from the initially stored heat, without reheating during the draw. Stratification, outlet position, controls, pipe losses and simultaneous use can change delivery; no fixed reduction factor is assumed.
4. Check recovery alongside storage
A smaller heater may need more stored volume to cover a peak sequence, while a high recovery rate can replenish water during a long draw. Compare recovery at the required temperature rise, not just heater input power.
For off-grid or limited electrical service, confirm that the planned heater power and recovery window fit the energy budget, inverter, generator and load-shedding priorities.
A published first-hour rating (FHR) is a separate tested delivery measure. Check its temperature and test conditions before comparing it with the example’s 40°C mixed litres.
ENERGY STAR · First-hour rating glossary (US test context) ↗5. Verify installation and real performance
Check tank data, mixing-valve rating, pressure and expansion control, relief discharge, pipe insulation, electrical protection and maintenance requirements with qualified installers.
After commissioning, record temperatures and how much of the peak sequence completes comfortably. Investigate an unexpected shortfall before simply raising the setpoint.
Questions that define useful hot-water service
| Question | Measure or verify | Why it changes the result |
|---|---|---|
| What happens together? | Peak draw sequence | Sets required delivered volume |
| How cold is the inlet? | Seasonal cold-water temperature | Changes mixing ratio and heating energy |
| How hot is storage? | Actual tank temperature profile | Changes ideal mixed volume |
| How fast is recovery? | Output at the full temperature rise | Adds water during or between draws |
| What reaches fixtures? | Flow, delivery temperature and losses | Determines real service time |
Worked example
Screen a 150 L electric tank
Stored water averages 55°C, cold water is 10°C, delivery is 40°C and the shower runs at 8 L/min for eight minutes.
Hot fraction = (40 − 10) / (55 − 10) = 0.667 Ideal mixed water = 150 / 0.667 = 225 L Continuous shower time = 225 / 8 = 28.1 min Equivalent showers = 28.1 / 8 = 3.5
The tank theoretically covers three complete showers with some margin. Real service may be lower, while heater recovery during the sequence may add capacity.
What to have ready
- Peak hot-water sequence and measured fixture flows
- Seasonal incoming cold-water temperature
- Actual storage and delivery temperatures
- Heater recovery output and available energy window
- Mixing, expansion, relief and scald-protection requirements
Common mistakes
- Comparing tanks only by nameplate litres.
- Ignoring colder winter inlet water.
- Counting all theoretical mixed volume as usable at fixtures.
- Raising storage temperature without verified mixing and scald protection.
Tools for these measurements
Prepare the measurements with these instrument guides.
Use and limitations. Sources include US public agencies. Principles are general; regulations and design values must be checked where you live.Worked examples use stated hypothetical inputs.
