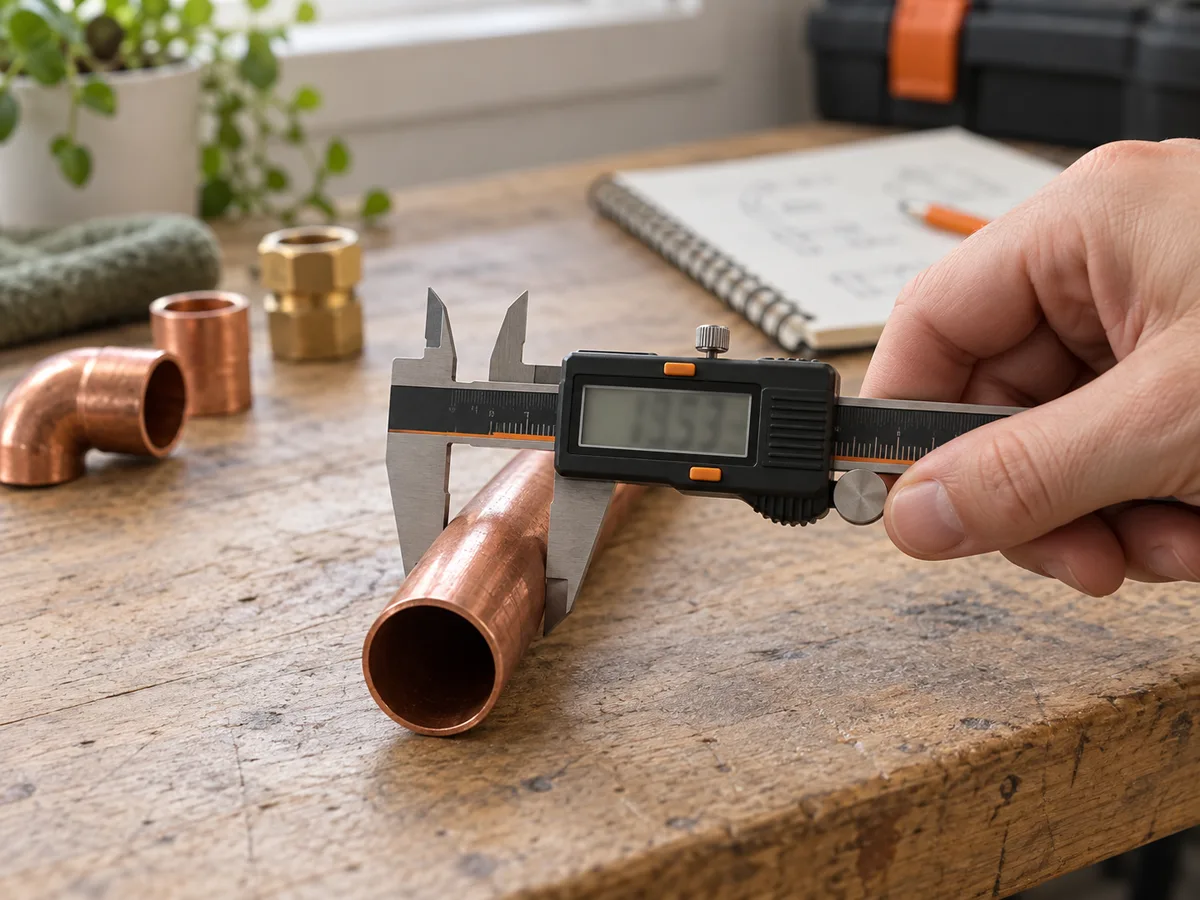

Digital caliper measuring the outside diameter of a copper pipe on a workshop bench

Plumbing & fabrication / TOOL GUIDE

Digital caliper

Measure outside, inside, depth and step dimensions without turning display precision into false accuracy.

A digital caliper is a quick comparator for pipe diameters, fittings, fasteners and material thickness. Its display may show hundredths, but burrs, jaw angle, dirt, temperature and measuring force often limit real accuracy.

A REPEATABLE METHOD

How to use it

  1. Clean the jaws and workpiece, close the caliper gently and verify zero without squeezing.
  2. Select metric or inch units and use the correct outside, inside, depth or step surfaces.
  3. Hold the jaws square to the feature and apply only enough force for consistent contact.
  4. Measure an outside diameter in a cross-section perpendicular to the axis without tilting the caliper. For a circular inside diameter, align through the centre and seek the maximum reading in that cross-section without tilting along the bore. A groove width uses a different contact method.
  5. Repeat at several positions, record the spread and compare with the relevant pipe or fitting standard.

INTERPRET THE MEASUREMENT

How to read the result

  • Displayed resolution is not the same as accuracy; a 0.01 mm digit does not guarantee a 0.01 mm result.
  • Nominal pipe size often does not equal measured outside or inside diameter.
  • Soft plastic, insulation and rubber compress under the jaws and need a stated measuring method.

Work through an example

Illustrative situations and readings, not product tolerances. Follow the instructions for your own tool.

Record a diameter without inventing a pipe sizeOpen the worked exampleClose the worked example

Measure the accessible outside of a loose, cool pipe sample on a bench; do not open an installed system to take the example readings.

Before you start

  • Clean the jaws and sample, then check zero with gentle contact.
  • Measure across a section perpendicular to the pipe axis, without tilting the caliper or squeezing the sample.
  • Repeat at labelled positions and directions; check burrs and alignment if readings differ.

Example notes

Outside reading 1
22.02 mm
Outside reading 2
22.04 mm
Outside reading 3
22.03 mm

What this tells you

The observed range is 22.02–22.04 mm; the spread is 0.02 mm. It is not an accuracy rating or proof of ovality. These readings alone identify neither nominal size nor a thread standard.

Your next step

Record the outside dimension, positions and material marking. Check the relevant manufacturer’s dimensions and connection standard before choosing a fitting.

Do not conclude: Do not call the sample a “22 mm thread” or enter its outside diameter into a calculator that requires internal diameter.
