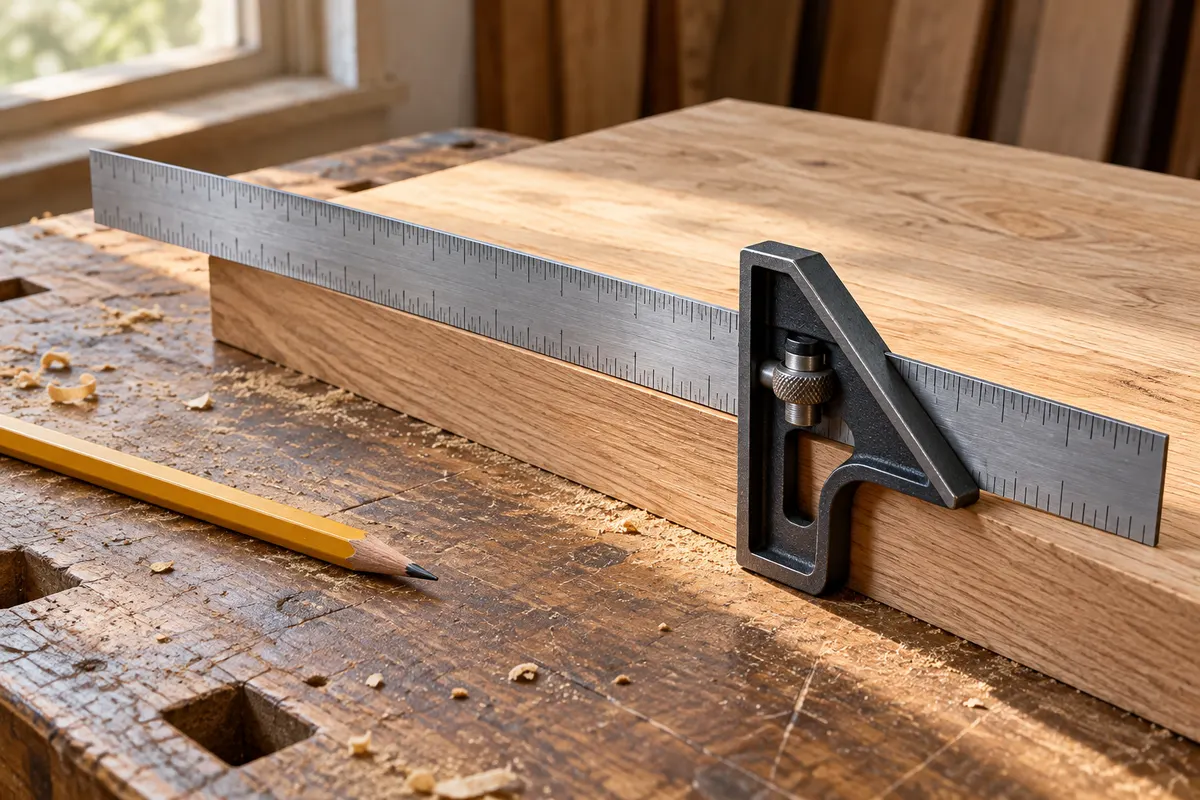

AI illustration of a steel combination square beside the straight edge of a wooden board

Measuring & layout / TOOL GUIDE

Combination square for repeatable layout

Mark right angles and consistent offsets from a clean reference edge using a sliding square head.

Transfer local 90-degree and 45-degree references or repeat an offset on safely supported material. It does not establish the squareness of an entire room or the suitability of a structural joint.

A REPEATABLE METHOD

How to use it

  1. Support the workpiece and choose a straight, clean reference edge; remove loose debris and inspect the head and blade.
  2. Assemble and adjust the blade according to the model instructions; lock the head at the required position without excessive tightening.
  3. Seat the selected reference face fully against the edge, with the blade flat on the workpiece.
  4. Make a fine pencil mark, then recheck the reference and setting before repeating it or cutting.
  5. For critical work, check the tool against a reliable square reference. A flip-line check on a straight edge can reveal disagreement, but is not a calibration certificate.

INTERPRET THE MEASUREMENT

How to read the result

  • The square face and miter face provide different references; check which face is actually seated.
  • The blade scale can support offset or depth checks, but readings depend on the head setting, units and contact.
  • A bowed board edge, burr or loose head can produce a wrong line even with a well-made square.

TROUBLESHOOT THE METHOD

Common problems and what to check

Problem

Repeated marks differ

What to do

Recheck the locked head, blade seating and same reference edge; do not average away a loose setting.

Problem

The flip lines diverge

What to do

Check the reference edge and marking technique, then compare with a reliable square. Set a suspect tool aside for accurate work.

Problem

The head will not slide smoothly

What to do

Loosen the lock correctly and clean the blade groove; do not force or file the measuring faces.

STOP BEFORE THE HAZARD

Safety boundary

  • Use supported material and keep the tool away from running saws, blades and moving mechanisms.
  • Prefer a pencil for ordinary wood layout; protect and store any supplied sharp scriber safely.
  • A correct mark does not make a cut safe. Use the cutting tool’s guards, work support and instructions separately.

SMART BUYING GUIDE

What to look for when choosing

  • Check positive locking, flat contact faces, readable units and blade length.
  • Buy extra center or protractor heads only if you need their distinct functions; they are not automatically included.

Types of tool

Blade with square/miter head

Best for: Everyday right-angle, 45-degree and offset layout.

Set with additional heads

Best for: Specific center-finding or adjustable-angle tasks after learning those heads separately.

Common functions

Local angle references and repeatable offsets from a selected edge.

Worth paying more for

  • A stable lock and clean accurate contact faces rather than decorative extras.

Usually not worth the extra cost

  • Accessory heads that you will not use or a long blade that obstructs the work.

Sources & instructions

AI-generated topic illustration; do not use the depicted scale for measurements.
